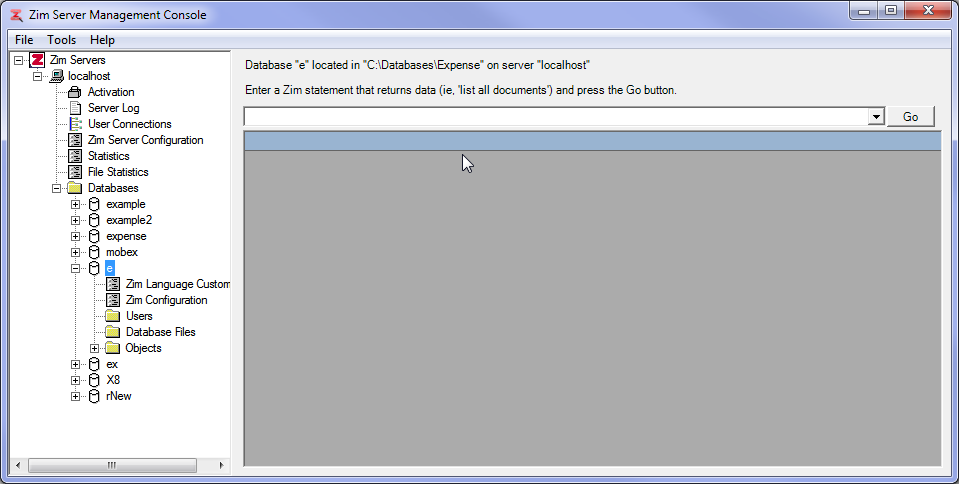

The Databases Explorer displays all databases managed by the selected instance of Zim Server. Each database is represented by an expandable node connected to the Databases node
x.
x.
x.

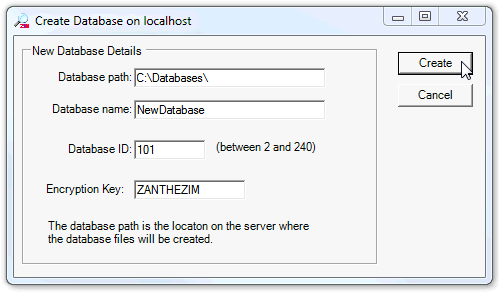

If the Database path is the same as an existing database, the following error message appears: Database creation failed: DatabaseExists
x.
There is a single node for each database in the treeview. When the database node is expanded, the following items become available:
Databases are listed in zimdb.zim
Zim Language Customizer
language.zim
This utility substitutes zimlang.exe and zimlangw.exe previously available in Zim 7.x
Zim Configuration
zimconfig.zim
Users
Display a table recognized users for the selected database. Users ZIM and super exist in every database.
Database Files
Objects
Under the Objects node, there are additional nodes to group Zim Objects according to type, as described below:
Entity Sets
EntName EntType AvgSize DirName RemoteName RemoteOwnderName EntPerUser ModTime
Documents
DocName FileName DocType AvgSize DirName DocPerUser
Constants
ConstName ConstValue ConstType DirName
Variables
Forms
FormName DirName Wdth Hgth WdgWdth WdgHght HMArgin VMargin WdgHMargin WdgVMargin WdgTag
Windows
WinName WNum Row Col Wdth Hght DM BC FC Fill Bord
Displays
DisplayName DirName WdgTag HMargin VMargin WdgHMargin WdgWdth WdgHght Wdth Hght
Menus
MenuName DirName MenuNum WdgTag MenuType WdgClass WdgSubClass WdgStyle Row Col WdgRow WdgCol DM FC WdgFCRed WdgFCGreen WdgFCBlue BC WdgBCRed WdgBCGreen WdgBCBlue WdgBackground WdgBorderStyle WdgShadow
Roles
Relationships
RelName RelCondition RelType AvgSize DirName RemoteName RemoteOwnerName RelPerUser
Sets
Directories
DirName OwnerDirName DirId Foreign
