Zim IDE Components

The Organization of Zim IDE

Zim IDE consists of eight separate visual components distributed within five different panels. Some panels are occupied by two different visual components, of which only one is displayed individually when selected by the designer.

The visual components of Zim IDE and their respective display panels are introduced below:

Component	Display Area
Menu Tool Bar	Menu Area
Database Tab Page	Left Panel
Tool Box Tab Page	Left Panel
GUI Designer	Central Panel
Document Editor	Central Panel
Properties Tab Page	Right Panel
Tree View Tab Page	Right Panel
The Field View Panel	Field View Panel

The following images show how the different areas of the Zim IDE fit together during the user interface design process:

Example 1: Connected databases and the structure of objects

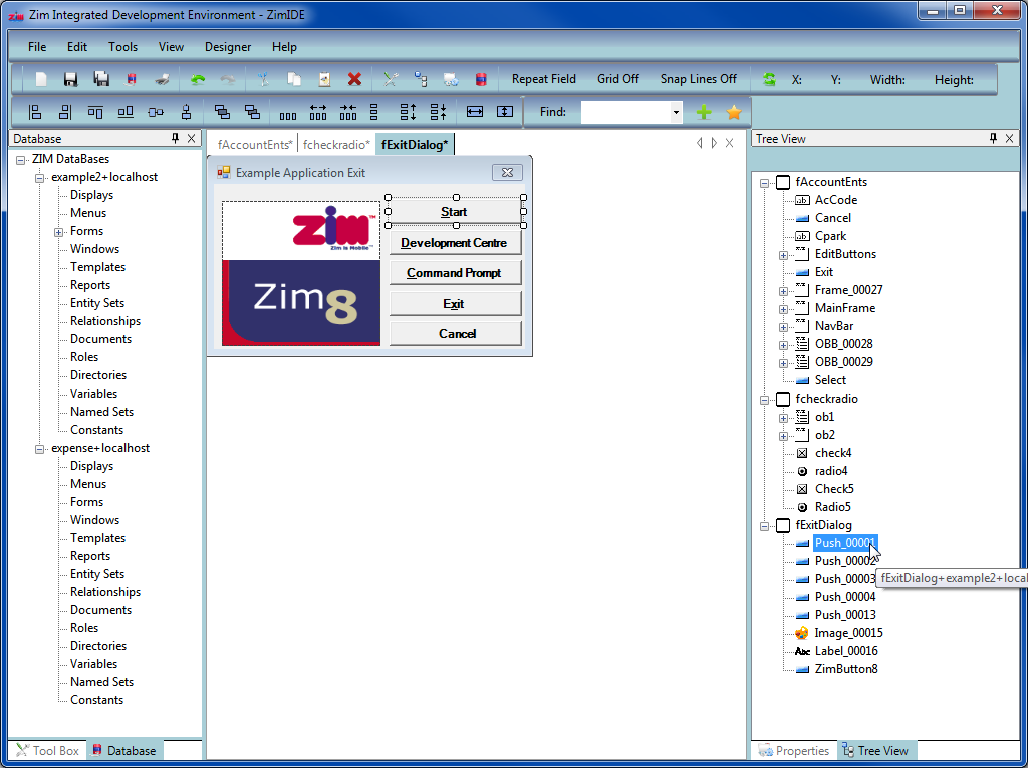

In this image, the form fExitDialog is being edited in the GUI Designer workspace, while the databases expense+localhost and example2+localhost are connected to this Zim IDE session as shown in the Database Tab Page. In addition, the other forms opened in the GUI designer (fAccountEnts, fcheckradio) are shown in the Tree View Tab Page on the right, along with their respective form fields.

Example 2: Form field attributes and objects available in the Tool Box tab page

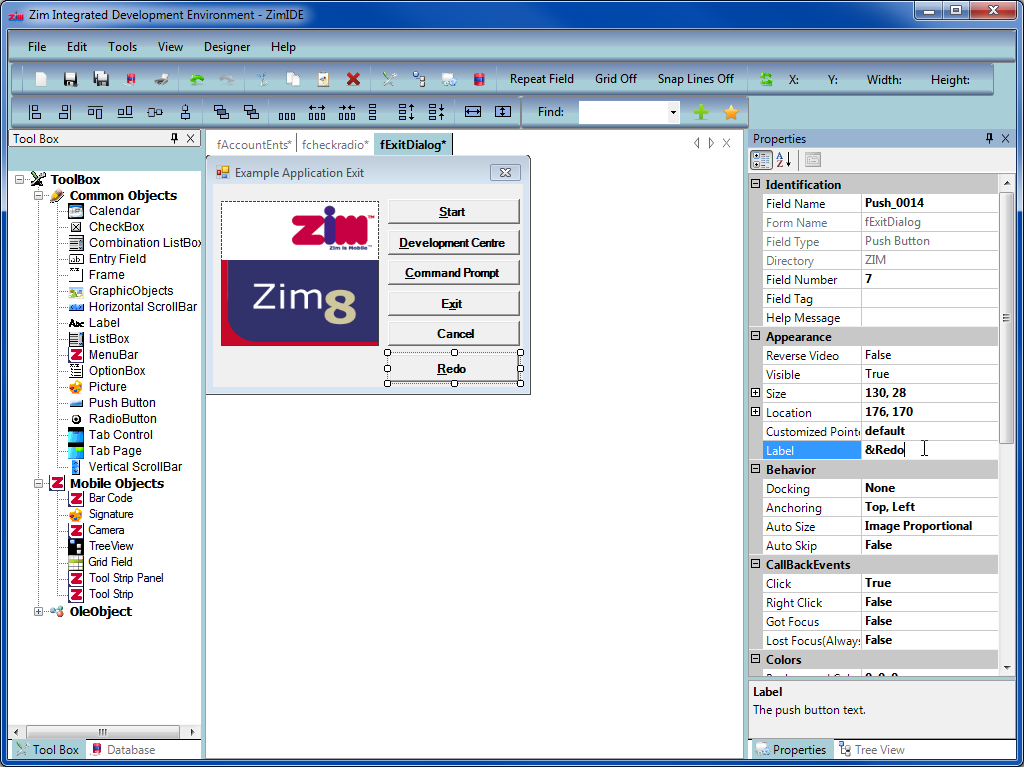

In this image, the form fExitDialog is being edited in the GUI Designer workspace. A Push Button is currently selected and its attributes are shown in the Attributes Tab Page. The Tool Box Tab Page is also visible, showing the available user interface objects that can be added to the form.
